Description

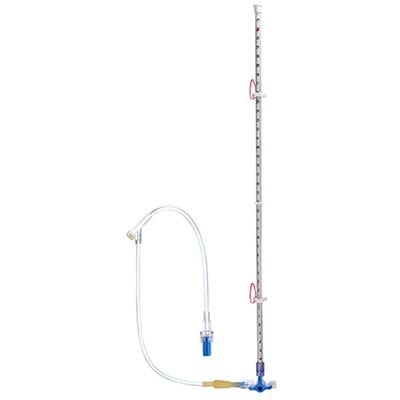

The Polymed CVP Manometer is a medical device intended for measuring central venous pressure (CVP), which is the pressure in the vena cava, near the right atrium of the heart. It helps healthcare professionals assess a patient's circulatory function and fluid balance, particularly in critical care settings like ICUs and operating rooms. This sterile, single-use manometer is designed for either continuous or intermittent monitoring. It is constructed from medical-grade materials and features a clear, graduated scale for precise readings.
Clear Graduated Scale: The manometer tube has easy-to-read markings from -4 cm to +34 cm, allowing for precise pressure measurement. Secure Connection: A 120 cm long extension tube is equipped with female and male luer locks to ensure a safe and leak-proof connection to the central venous catheter. Three-Way Stopcock: The attached three-way stopcock allows for easy control and connection to the central venous catheter. Sliding Indicator: A sliding indicator is included to help record readings, making it simpler for healthcare professionals to track changes in central venous pressure. Fixation Clamps: The device comes with moulded clamps and latex-free rubber strings to securely fix the manometer to an IV stand. Medication Port: A Y-injection site is provided for the administration of additional medication if required. Medical-Grade Material: The device is made from non-toxic, medical-grade polycarbonate and is DEHP-free and latex-free to prevent allergic reactions.
Q: What is the primary function of the Polymed CVP Manometer?
A: The Polymed CVP Manometer is a medical device designed for measuring and monitoring a patient's central venous pressure (CVP), which can be done either continuously or intermittently. This measurement assists healthcare professionals in assessing circulatory function and fluid balance.
Q: What is the measurement range of the manometer tube?
A: The manometer tube has clear graduations marked from -4 cm to +34 cm, allowing for easy reading and recording of pressure measurements.
Q: What components are included in the Polymed CVP Manometer set?
A: The set includes a manometer tube attached to a three-way stopcock, a 120 cm long extension tube with male and female luer locks, a sliding indicator for recording readings, and moulded clamps with latex rubber strings for fixation to an IV stand. It may also feature a Y-injection site for administering extra medication.
Q: Is this device intended for single use?
A: Yes, the Polymed CVP Manometer is a sterile, single-use device to minimize the risk of infection and prevent cross-contamination between patients.
Q: Who should use this medical device?
A: This is a medical device intended for use by qualified healthcare professionals in clinical settings like ICUs, emergency rooms, and for surgical applications to monitor critically ill patients. Its use and interpretation should be performed by trained personnel.
The Polymed CVP Manometer is a medical device intended for measuring central venous pressure (CVP), which is the pressure in the vena cava, near the right atrium of the heart. It helps healthcare p...
Key Benefits
The Polymed CVP Manometer provides a reliable method for monitoring central venous pressure, which is a fundamental parameter in managing the fluid status and cardiac function of critically ill patients. Its clear, graduated tube ensures accurate pressure readings, assisting in clinical assessments. The design, featuring secure luer lock connectors and a three-way stopcock, facilitates a safe and controlled monitoring process. The inclusion of a sliding indicator aids healthcare professionals in tracking pressure changes over time. Being a sterile, single-use device, it minimizes the risk of cross-contamination and infection.
The Polymed CVP Manometer provides a reliable method for monitoring central venous pressure, which is a fundamental parameter in managing the fluid status and cardiac function of critically ill pat...
Direction for Use/Dosage
For use by a qualified healthcare professional. Connect the IV tubing to the manometer and prime the entire setup, ensuring all air bubbles are removed. Attach the manometer to an IV pole using the provided clamps. Connect the extension tube from the manometer's three-way stopcock to the patient's central venous catheter. Turn the stopcock to allow the IV fluid to flow into the manometer, filling it to a level above the expected CVP reading. Turn the stopcock to connect the manometer to the patient. The fluid level will drop and fluctuate with respiration. Read the CVP measurement at the point where the fluid level stabilizes at the end of the patient's expiration. Use the sliding indicator to mark the reading for future reference.
For use by a qualified healthcare professional. Connect the IV tubing to the manometer and prime the entire setup, ensuring all air bubbles are removed. Attach the manometer to an IV pole using the...
Safety Information/Precaution
This device is intended for single use only to prevent cross-contamination and infection. It should be used by trained healthcare professionals familiar with CVP monitoring procedures. Ensure all connections are secure to prevent leaks or air embolism. Verify the sterility of the packaging before use; do not use if the package is damaged or opened. Always consult a healthcare professional before using this product, especially for patients with pre-existing medical conditions.
This device is intended for single use only to prevent cross-contamination and infection. It should be used by trained healthcare professionals familiar with CVP monitoring procedures. Ensure all c...
Other Information
Store in a cool, dry place away from direct sunlight. The product is individually packed in a sterile peelable pouch. The materials used are biocompatible and DEHP-free.
