Description

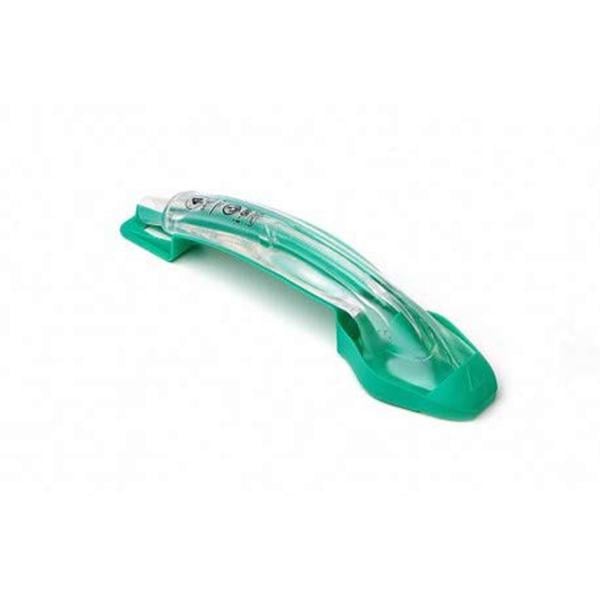

The Intersurgical i-gel is a second-generation supraglottic airway device used for airway management in anaesthesia and resuscitation. It is made from a medical-grade thermoplastic elastomer that is soft and gel-like. This material allows it to create an anatomical seal of the pharyngeal, laryngeal, and perilaryngeal structures without the need for an inflatable cuff, which helps to avoid compression trauma. The size 4 device is designed for medium adults weighing between 50 and 90 kg. Its design is based on extensive research of human anatomy to mirror the contours of the airway structures.
Anatomical Design: The device's shape, softness, and contours are designed to accurately mirror the pharyngeal, laryngeal, and perilaryngeal framework for a natural fit.
Non-Inflatable Cuff: Features a soft, gel-like cuff made from a thermoplastic elastomer that creates a seal without inflation, reducing the risk of compression trauma.
Gastric Channel: Incorporates a channel that allows for the management of regurgitant fluid and the passing of a nasogastric tube, enhancing patient safety by reducing aspiration risk.
Integral Bite Block: A built-in bite block helps to prevent the occlusion of the airway channel if the patient bites down.
Buccal Cavity Stabiliser: This feature aids in insertion and helps to eliminate the potential for the device to rotate once in position.
Q: What is the i-gel airway made from?
A: The i-gel is constructed from a medical-grade thermoplastic elastomer, which is a soft, gel-like, and transparent material designed to create an anatomical seal.
Q: Is the i-gel airway reusable?
A: No, the i-gel is a single-use device and should not be reprocessed or reused after it has been deployed.
Q: What is the purpose of the gastric channel in the i-gel?
A: The gastric channel helps reduce the risk of aspiration by allowing for the passage of a nasogastric tube to empty stomach contents and provides an early warning of regurgitation.
Q: Who is qualified to insert an i-gel airway?
A: The i-gel should only be used by trained medical and healthcare professionals who are familiar with its application and airway management techniques.
Q: Does the i-gel cuff require inflation?
A: No, the i-gel features a non-inflatable cuff that is designed to anatomically fit the laryngeal inlet without needing to be filled with air, which helps to reduce compression trauma.
The Intersurgical i-gel is a second-generation supraglottic airway device used for airway management in anaesthesia and resuscitation. It is made from a medical-grade thermoplastic elastomer that i...
Key Benefits
The design facilitates rapid insertion, with proficient users able to place the device in less than 5 seconds, which is critical in emergency situations.
It is designed to reduce trauma and discomfort by working in harmony with the patient's anatomy.
The non-inflatable cuff provides a reliable seal, ensuring dependable ventilation and oxygenation.
A dedicated gastric channel provides an additional measure of protection against aspiration.
The device is sterile, intended for single-patient use, and is latex-free, which is a consideration for patient safety.
The design facilitates rapid insertion, with proficient users able to place the device in less than 5 seconds, which is critical in emergency situations.
It is designed to reduce trauma and dis...
Direction for Use/Dosage
For use by trained medical professionals only.
1. Select the appropriate size based on patient weight (Size 4 for 50-90 kg).
2. Lubricate the back, front, and sides of the non-inflatable cuff with a water-based lubricant.
3. Position the patient in the 'sniffing the morning air' position, with the head extended and neck flexed, and gently press the chin down.
4. Introduce the soft tip into the patient's mouth, aiming towards the hard palate.
5. Glide the device downwards and backwards along the hard palate with a gentle, continuous push until a definitive resistance is felt.
6. The patient's incisors should then be resting on the integral bite block.
For use by trained medical professionals only.
1. Select the appropriate size based on patient weight (Size 4 for 50-90 kg).
2. Lubricate the back, front, and sides of the non-inflatable cu...
Safety Information/Precaution
For use by healthcare professionals trained in airway management techniques only.
Always remove the device from its protective cradle or cage pack before use; these are not introducers.
Ensure dentures or plates are removed from the patient's mouth before attempting insertion.
Do not apply excessive force during insertion.
This is a sterile, single-use device; do not reuse.
Contraindications include patients with intact airway-protective reflexes, known esophageal disease, or upper-airway obstructions.
Consult the complete user guide for a comprehensive list of warnings and precautions before use.
For use by healthcare professionals trained in airway management techniques only.
Always remove the device from its protective cradle or cage pack before use; these are not introducers.
Ens...
Other Information
The i-gel Size 4 is intended for patients weighing 50-90 kg. It is made from a medical-grade thermoplastic elastomer and is latex and PVC-free. The device is supplied in a sterile, colour-coded protective cradle made from recyclable polypropylene (PP) that maintains its shape before use. The package may also contain a sachet of lubricant and an airway support strap. Store in a cool, dry place away from direct sunlight.
The i-gel Size 4 is intended for patients weighing 50-90 kg. It is made from a medical-grade thermoplastic elastomer and is latex and PVC-free. The device is supplied in a sterile, colour-coded pro...
