Description

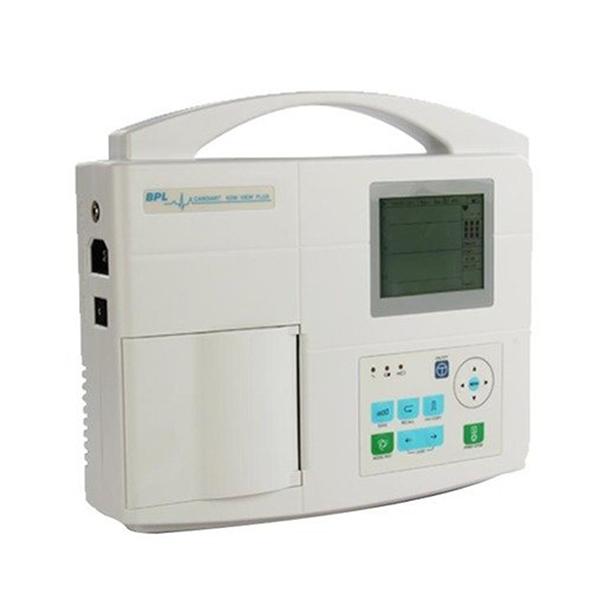

The BPL Cardiart Viewplus 6208 is a 3-channel electrocardiograph machine designed for clinical use. It simultaneously acquires 12 leads to measure and interpret ECG readings, presenting them on a 3.5-inch color LCD screen. This portable device, weighing approximately 2.5 kg with its battery, facilitates straightforward ECG processes for improved diagnosis. It features internal storage and can be operated via mains power or its rechargeable Li-ion battery.
Three-Channel Recording: The device performs simultaneous 3-channel ECG recording with 12-lead acquisition.
Color LCD Screen: It is equipped with a 3.5-inch color LCD that allows for a clear preview of ECG waveforms and patient information.
Internal Memory and USB Storage: Features internal storage for up to 500 ECGs, which can be expanded using a USB drive.
Rechargeable Battery: A high-performance Li-ion battery allows for portable operation, capable of recording for over 3 hours continuously.
Automatic Interpretation: The machine provides automatic measurement and interpretation of ECG parameters.
Q: What are the main operating modes of this ECG machine?
A: The BPL Cardiart 6208 Viewplus offers several operating modes, including Auto (for simultaneous acquisition), Manual (for real-time acquisition and printing), and Rhythm mode.
Q: How many ECGs can be stored in the device's internal memory?
A: The internal memory allows for the storage of up to 500 ECG recordings, and this capacity can be expanded using a USB drive.
Q: What are the connectivity options for this device?
A: This electrocardiograph supports data transfer to a PC via an Ethernet port, can be connected to a barcode scanner and a USB printer, and allows for ECGs to be transferred to a USB drive in PDF format.
Q: Does the machine have a built-in battery?
A: Yes, it is equipped with a high-performance Li-ion rechargeable battery that allows for mains-independent operation. A fully charged battery can record approximately 330 ECGs in auto mode.
Q: Does this device provide interpretation of the ECG readings?
A: Yes, the Cardiart 6208 Viewplus has a feature for automatic measurement and interpretation of ECG parameters. However, it is intended to be used on an advisory basis by a clinician.
The BPL Cardiart Viewplus 6208 is a 3-channel electrocardiograph machine designed for clinical use. It simultaneously acquires 12 leads to measure and interpret ECG readings, presenting them on a 3...
Key Benefits
Provides detailed cardiac assessment through simultaneous 12-lead acquisition and 3-channel recording.
Allows for clear visualization of ECG data on a color LCD screen before printing.
Offers portability for use in various clinical settings, supported by a lightweight design and a rechargeable Li-ion battery.
Facilitates efficient record-keeping with internal memory for up to 500 ECGs and options to transfer data via USB.
Features multiple filters for AC, muscle tremor (EMG), and baseline drift to ensure clear and accurate readings.
Provides detailed cardiac assessment through simultaneous 12-lead acquisition and 3-channel recording.
Allows for clear visualization of ECG data on a color LCD screen before printing.
Offe...
Direction for Use/Dosage
This device is intended for use by qualified medical professionals.
Ensure the patient cable is securely connected to the device.
Attach the limb and chest electrodes to the patient as per standard medical procedure.
Enter patient information using the provided keypad and navigation keys.
Select the desired mode, such as Auto or Manual, for recording.
Initiate the ECG recording process. The device will acquire, analyze, and print the report via its built-in thermal printer.
Review the ECG on the screen and print a copy if needed.
This device is intended for use by qualified medical professionals.
Ensure the patient cable is securely connected to the device.
Attach the limb and chest electrodes to the patient as per ...
Safety Information/Precaution
To be operated only by trained and qualified medical personnel.
Before operation, ensure that all electrodes are connected correctly to the patient.
Ensure the conductive parts of electrodes do not touch the ground or other conductive surfaces.
Use only original accessories supplied by the manufacturer for dependable performance.
Keep the device and its components away from water or other liquids.
Consult the user manual for detailed instructions on operation, maintenance, and safety precautions.
To be operated only by trained and qualified medical personnel.
Before operation, ensure that all electrodes are connected correctly to the patient.
Ensure the conductive parts of electrode...
Other Information
The device weighs approximately 2.5 kg including the battery.
Its dimensions are 300mm x 260mm x 75mm.
For data transfer, the machine supports connectivity via Ethernet, RS232, and USB ports.
Report formats can be generated as PDF, with optional SCP/FDA-XML/DICOM formats available.
Store the device in a cool and dry place.
The device weighs approximately 2.5 kg including the battery.
Its dimensions are 300mm x 260mm x 75mm.
For data transfer, the machine supports connectivity via Ethernet, RS232, and USB port...
